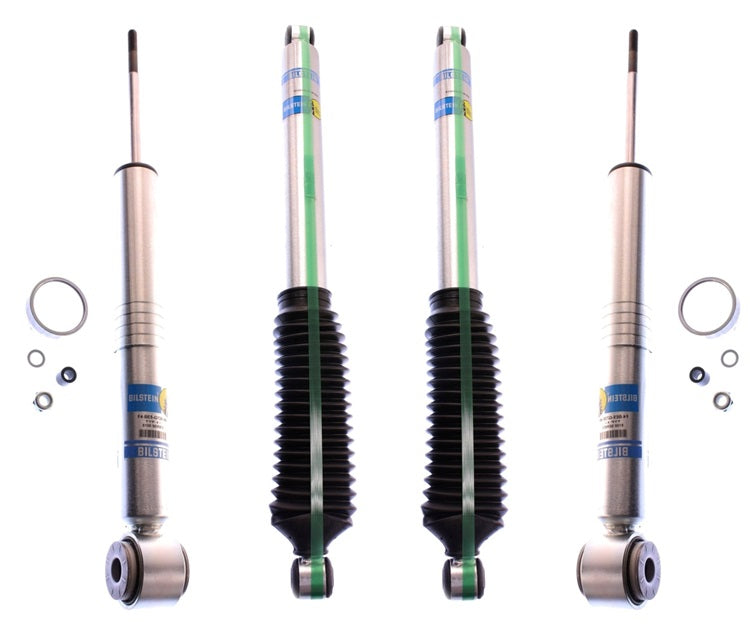

24-317832, 33-187471 Bilstein B8 5100 Series Front and Rear Shocks for 2009-2013 Ford F-150 2WD - Front Lift 0-2.5" / Rear Lifted Height: 0-1"

24-317832, 33-187471 Bilstein B8 5100 Series Front and Rear Shocks for 2009-2013 Ford F-150 2WD - Front Lift 0-2.5" / Rear Lifted Height: 0-1"

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Free Shipping in the Lower 48 United States

Fitment:

2009-2013 Ford F-150 2WD

Fitment Notes:

RWD; Front Lift Height: 0-2.5"

24-317832 Front Shock Specs:

• Collapsed Length: 16.22"
• Extended Length: 21.74"
• Lower Mount: Eye 20.3mm
• Upper Mount: Stem
• Monotube
• Zinc Plated
• Snap Ring Grooved Body (Coilover)
• 46mm
• Replacement Mounting Kit: B-KT01-0000029
• Replacement Spring Seat: E-FT01-0000005
• UPC: 651860934563
• Limited Lifetime Warranty
• RWD; Front Lift Height: 0-2.5"
• Old Bilstein Part Numbers: 24-187466, BE5-G738, F4-BE5-G738-H0

33-187471 Rear Shock Specs

• Collapsed Length: 17.07"
• Extended Length: 28.03"
• Lower Mount: Eye 12mm
• Upper Mount: Eye 12mm
• Monotube
• Zinc Plated
• Smooth Body (NON Coilover)
• 46mm
• Replacement Boot: E4-SR1-Z001A05
• UPC: 6518660639307
• Limited Lifetime Warranty
• 2WD Only; For Rear Lifted Height: 0-1"
• EAN: 4025258639600

Kit Contains:

Quantity 2 Front Bilstein 24-317832

Quantity 2 Rear Bilstein 33-187471

Bilstein 09-13 Ford F-150 Flotillera B8 5100 Series Front 46mm Monotube Shock Absorber

Warning: California Prop 65 Warning
