24-323680, 33-253190 Bilstein B8 5100 Series Front & Rear Shock Absorbers for 2021-2025 Ford F-150 4WD

24-323680, 33-253190 Bilstein B8 5100 Series Front & Rear Shock Absorbers for 2021-2025 Ford F-150 4WD

Bilstein 24-323680 and 33-253190 B8 5100 Series Ride Height Adjustable shock absorbers are specifically designed for the Ford F-150 4WD application. These shocks feature mulitiple snap –ring grooves in the body to allow for different spring seat positions, allowing you to choose what ride height setting you would like to set your truck up at.  They range anywhere from 0”-2.5” with your OE coil springs (depending on your application).

Fitment:

2021-2025 Ford F-150 4WD

Important Fitment Notes: Excludes models with CCD (Continuously Controlled Damping – 4WD

·       4WD applications

·       Re-use OE Springs (or we offer new ones for an additional cost)

·       46mm Digressive Piston with Self-Adjusting Deflective Disc Valve Setting

·       B8 5100 Series

·       Level out your Ford F-150 with these 5100 Series Shocks

·       Allows for Larger Wheels and Tires

·       Free Shipping in the Lower 48 United States

·       Limited Lifetime Warranty

·       High Pressure Mono-tube design

·       Replaces Factory Struts, Allows you to keep your OE Coil Springs

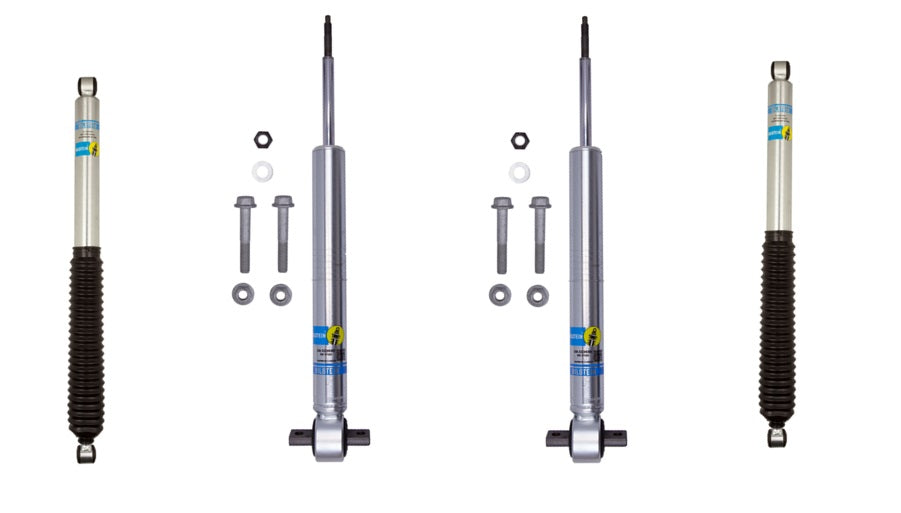

Kit Includes 4 Shocks:

Quantity 2 – Front Bilstein Shocks 24-323680

Quantity 2 – Rear Bilstein Shocks 33-253190

Please Note:  These rear Bilstein shocks are non – adjustable

0-2.5” Front Ride Height

0-1” Rear Ride Height

24-323680 Bilstein B8 5100 Series Front Ride Height Adjustable Shocks

2015-2021 Ford F-150

·       Front Shock Ride Height Adjustable

·       Collapsed Length: 16.85”

·       Extended Length: 22.22”

·       Travel: 5.37”

·       Lower Mount: Cross Bar

·       Upper Mount: Stem

·       Replacement Mounting Kit: B4-KT1-Z388A00

·       Monotube Design

·       Zinc Plated

·       Limited Lifetime Warranty

·       Free Shipping in the Lower 48 United States

·       UPC: 00651860888675

·       EAN: 4025258880972



·       4WD Only; Front Lift Height: 0-2.5"; Without Continuously Controlled Damping

·       Ford F150 4WD; '21+; F; B8 5100; 0-2.5"

·       Replaces Worn Out Suspension



33-253190 Bilstein B8 5100 Series Rear Shocks

2015-2020 Ford F-150 4WD - 0-1" Rear Lift(depending on application)

FREE SHIPPING IN THE LOWER 48 UNITED STATES

Rear Bilstein 5100 Series Shocks 33-253190



·       Rear Shock

·       Collapsed Length: 17.52”

·       Extended Length: 28.74”

·       Travel: 11.22”

·       Lower Mount: EYE 12mm

·       Upper Mount: EYE 12mm

·       Replacement Boot: E4-SR1-Z001A05

·       Monotube Design

·       Zinc Plated

·       Limited Lifetime Warranty

·       Free Shipping in the Lower 48 United States

·       UPC: 00651860783192

·       Part Number: 33-253190

·       Levels Out Vehicle

·       Replaces worn Out Suspension / F-150
