47-253179, 24-265874 Bilstein B8 6112 Front Suspension Kit with Rear 5100 Series Shocks for 2015-2022 Chevy Colorado and 2015-2022 GMC Canyon 4WD

Bilstein B8 6112 Front Suspension Kit with Rear 5100 Series Shocks for 2015-2022 Chevy Colorado and 2015-2022 GMC Canyon 4WD

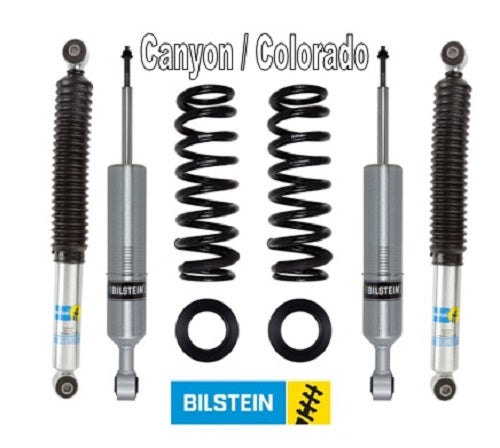

Kit Includes:

Quantity 1 – Bilstein B8 6112 Kit 47-253179 (Front Shocks / Front Coil Springs)

Quantity 2 – Bilstein Rear 5100 Series Shock Absorbers 24-265874

Bilstein Suspension Shocks & Coils with Rear 5100s for 15-22 Chevrolet Colorado /

Fitment:

2015-2022 Chevy Colorado 4WD

2015-2022 GMC Canyon 4WD

Fitment Notes:

Front Lift – 0.30-2.75” Depending on vehicle (please see the ride height chart attached or contact us for specific details relevant to you Year/Make/Model)

Rear Lift – 0-1” Depending on Vehicle (Rear shocks do not provide lift.....Shocks will accommodate up to 0"-1" Lift....If you need rear lift options, please contact us)

 4WD

This Bilstein Front &  Rear Leveling Kit – Suspension Kit for 15-22 Chevrolet Colorado and the 15-22 GMC Canyon offers a perfect solution to worn out suspension.

47-253179 Bilstein B8 6112 Kit

Bilstein B8 6112 Suspension Kits are specifically designed to provide more ground clearance, allow you to place larger tires on your truck, and it also increases wheel travel.  With the multiple snap-ring grooves in the body allow for different spring seat positions, which will allow up to 0.30 – 2.75” of front lift (depending on your application).  These Kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats.  The large 60mm digressive piston allows for increased damping control for the best direct fit spring and shock kit for your Colorado or Canyon!

Front Bilstein B8 6112 Suspension Kit 47-253179

• UPC: 651860858050
• Monotube Design
• 60mm id- 2.65" od
• Shocks Zinc Plated
• Black Coil Springs
• Part Number: 47-253179
• Front Lift Height: 0.3-2.75"
• EAN: 4025258935764
• Free Shipping in the Lower 48 United States
• Limited Lifetime Warranty
• Bilstein Superseded Number: 24-254793

Rear 5100 Series Shock Absorbers – 24-265874

• UPC: 651860790640
• Monotube Design
• 14.80" Collapsed Length
• 23.24" Extended Length
• 8.43" Travel
• Lower Mount: Eye 14.4mm
• Upper Mount: Eye 14.4mm
• Shocks Zinc Plated 46mm
• Smooth Body NON Coilover
• Part Number: 24-265874
• 4WD Only; For Rear Lifted Height: 0-1"
• EAN: 4025258786809
• Free Shipping in the Lower 48 United States
• Limited Lifetime Warranty
• Bilstein Superseded Number: 24-254793

·       Interchange Part Numbers:  Fox Offroad Shocks 985-24-129, Rancho RS77841

      Icon Vehicle Dynamics 71010
