• Bilstein 5100 Series Front 2.5” Lift Kit Fully Assembled Coilover Shocks with Rear 5100 Series Shocks for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Toyota Tundra
1 1

Bilstein

Bilstein 5100 Series Front 2.5” Lift Kit Fully Assembled Coilover Shocks with Rear 5100 Series Shocks for 2007-2021 Toyota Tundra

Bilstein 5100 Series Front 2.5” Lift Kit Fully Assembled Coilover Shocks with Rear 5100 Series Shocks for 2007-2021 Toyota Tundra

$940.88
$1,099.00 $940.88
Sale Sold out
Taxes included. Shipping calculated at checkout.

2.5" Front / 1" Rear Leveling Lift System for 2007-2021 Toyota Tundra - EXCEL 516007B - Tundra Suspension Package

24-232173 Bilstein Fully Assembled, 24-321150 Bilstein - 2.25" Front and 1" Rear Leveling Lift System for a 2007-2021 Toyota Tundra 2WD / 4WD

Toyota Tundra Bilstein 5100 Series Fully Assembled Front Coilover Shocks with Rear Bilstein 5100 Shocks – Lift Kit

Bilstein 5100 Series Front 2.5” Lift Kit Fully Assembled Coilover Shocks with Rear 5100 Series Shocks for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021 Toyota Tundra

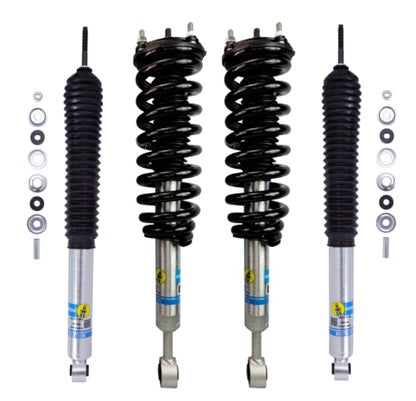

Kit Includes:

Quantity 2 24-232173 Front 5100 Shocks

Quantity 2 Front Lifted Coil Springs

Quantity 2 Aftermarket Top Mounts with Bushings and Hardware

Quantity 2 – 24-321150 Bilstein Rear 5100 Shocks



These Bilstein 24-232173 & 24-321150 B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Front 24-232173 Bilstein 5100 Series Shocks

  • Zinc Plated
  • Collapsed Length (IN) 17.77
  • Extended Length (IN) 24.21
  • Travel Length (IN) 6.44
  • Lower Mount: Eye 16.4mm
  • Upper Mount: Stem
  • Monotube
  • 651860730707



Rear 24-321150 Bilstein 5100 Series Shocks



  • Zinc Plated
  • Collapsed Length (IN) 15.33
  • Extended Length (IN) 24.80
  • Travel Length (IN) 9.47
  • Lower Mount: Eye 12.4mm
  • Upper Mount: Stem
  • Monotube
  • 651860877723

FREE SHIPPING IN THE LOWER 48 UNITED STATES



Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with an OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Fitment:

2007-2021 Toyota Tundra
